AKM1530-5A CNC Router
The AKM1530-5A CNC router features a 5-axis Hiteco water-cooling ATC spindle, disc tool changer, Yaskawa servo motor, and Syntec 610MA-E5 control, ensuring high-speed, precise multi-axis machining.

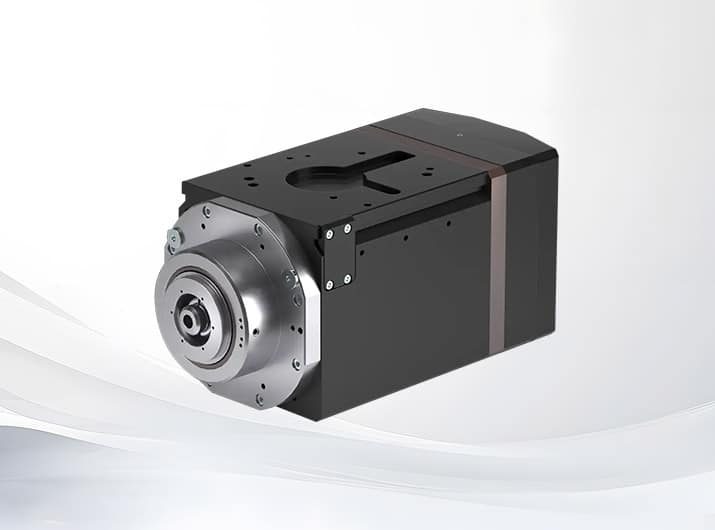

The 5-axis Hiteco water-cooling ATC spindle is designed for high-performance precision machining in CNC routers. Offering advanced water cooling technology, it ensures efficient heat dissipation and consistent operation. The automatic tool changer enhances productivity by reducing downtime, making it ideal for complex and high-volume tasks.
The disc tool changer of the CNC router offers fast and efficient tool swapping, enhancing machining productivity. Featuring a rotary disc mechanism, it can hold multiple tools and automatically change them with precision. This system minimizes downtime, ensuring continuous operation for complex and high-precision tasks.
The Yaskawa servo motor in the CNC router delivers exceptional precision and smooth motion control. Known for its high efficiency and reliability, it ensures accurate positioning and rapid response times, enhancing overall machine performance. Ideal for demanding applications, it supports high-speed, high-precision operations for optimal productivity.

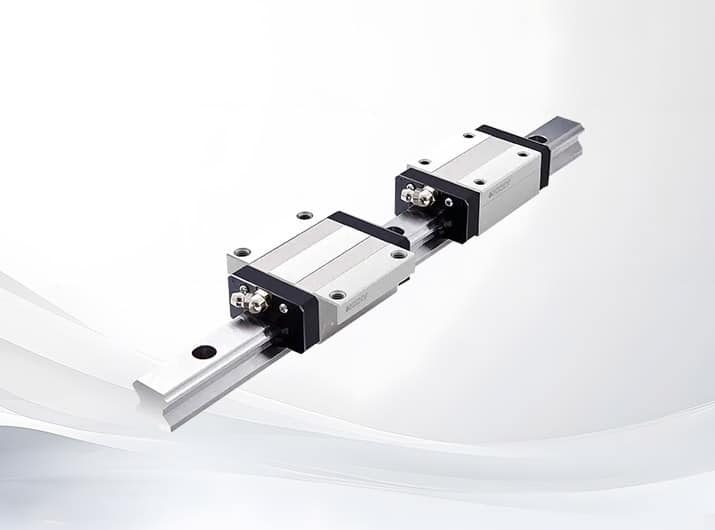

The THK linear guide in the CNC router ensures superior accuracy and smooth motion along all axes. Engineered for durability and high load capacity, it minimizes friction and wear, providing stable and precise performance. This advanced guide system enhances the router’s efficiency and longevity, even under heavy-duty operations.

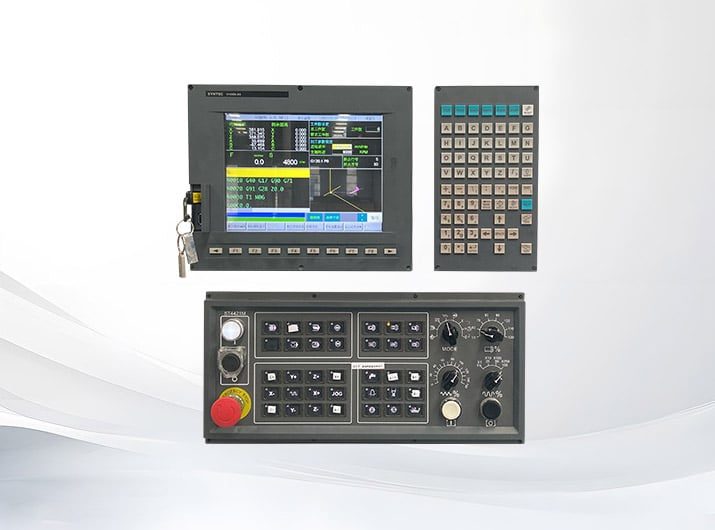

The Syntec 610MA-E5 control system for the CNC router offers advanced features for precise and efficient machining. With an intuitive user interface, real-time monitoring, and multi-axis control capabilities, it enhances the machine’s performance. The system ensures seamless operation, improving productivity and accuracy in complex and high-precision tasks.

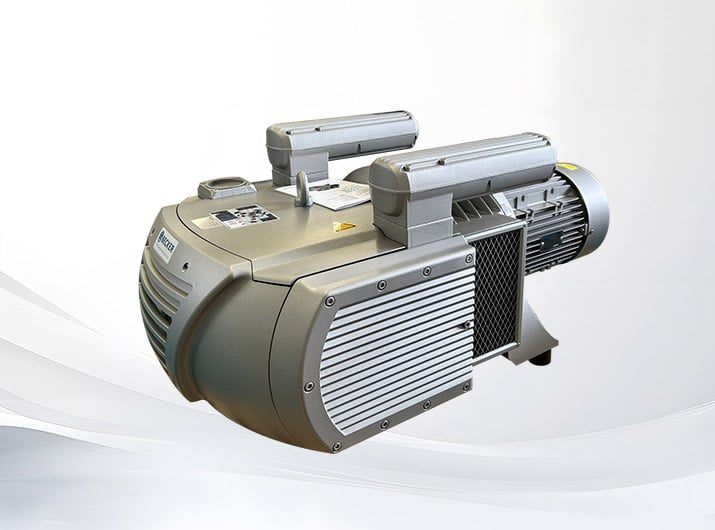

The oil-free vacuum pump in the CNC router provides a clean and efficient solution for holding workpieces in place. With no oil contamination, it ensures a reliable and environmentally friendly operation. Its high suction power enhances stability, reducing maintenance needs and ensuring consistent performance during intricate machining tasks.

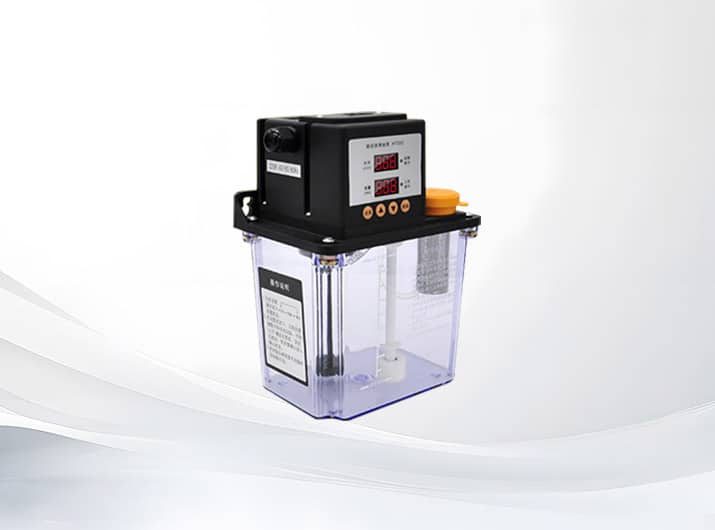

The automatic oil lubrication system in the CNC router ensures consistent and precise lubrication of critical components. It reduces friction and wear, extending the lifespan of the machine. This efficient system automatically supplies the right amount of oil, minimizing maintenance efforts and ensuring smooth, reliable operation during high-precision tasks.

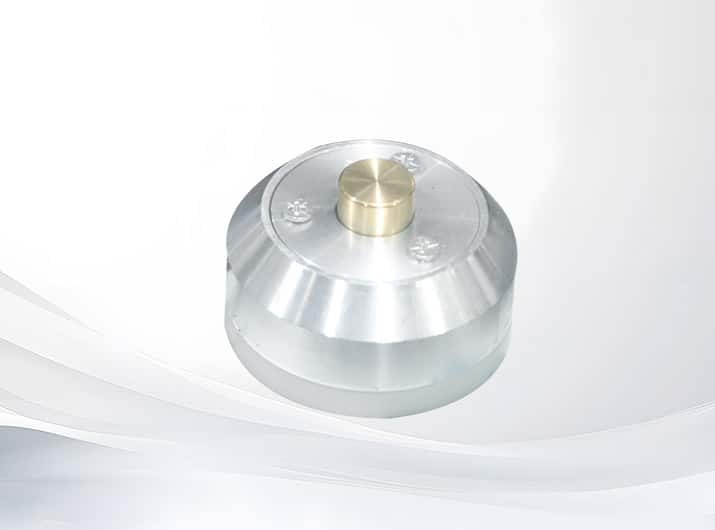

The tool sensor in the CNC router provides accurate automatic tool measurement, ensuring precise tool offset adjustments. This advanced sensor minimizes setup time and enhances machining accuracy by detecting tool height and wear. It streamlines the process, ensuring consistent and high-quality results for complex, high-precision applications.
| Model | AKM1212-5A | AKM1224-5A | AKM1325-5A | AKM1530-5A |
|---|---|---|---|---|
| Working Area | 1200*1200*600mm | 1200*2400*600mm | 1300*2500*600mm | 1500*3000*600mm |
| C Axis (Rotary Axis) | ±360° | |||
| B Axis (Swing Axis) | ±110° | |||
| Framework | Cast Steel Structure | |||
| Spindle | Italian Hiteco 10KW 5-Axis ATC Spindle With Industry Water Chiller | |||
| Rotating Speed | 6000-24000 rpm/min | |||
| Tool Magazine | Disc-Type ATC (With 8 Tools) | |||
| Drive Motors | Yaskawa Servo Motor | |||
| Guide Rail | Hiwin 30mm Linear Guide Rail | |||
| X, Y, Z Axis Transmission | X, Y Axis Rack and Pinion Rack, Z Axis Taiwan TBI Ball Screw | |||
| Repositioning Accuracy | ±0.03mm | |||
| Control System | Taiwan Syntec 610MA-E5 System | |||
The rotating axis is an optional configuration for the CNC router, enabling precise machining of cylindrical and complex 3D workpieces. It allows for multi-angle cutting, engraving, and carving with enhanced flexibility. Ideal for furniture, sculptures, and decorative elements, this feature expands machining capabilities, improving accuracy and efficiency in rotary applications.
The safety light curtain is an optional configuration for the CNC router, providing advanced safety protection by detecting obstacles in the work area. It automatically stops machine operation if interference is detected, preventing accidents and ensuring operator safety. Ideal for high-speed machining environments, it enhances workplace security and operational reliability.

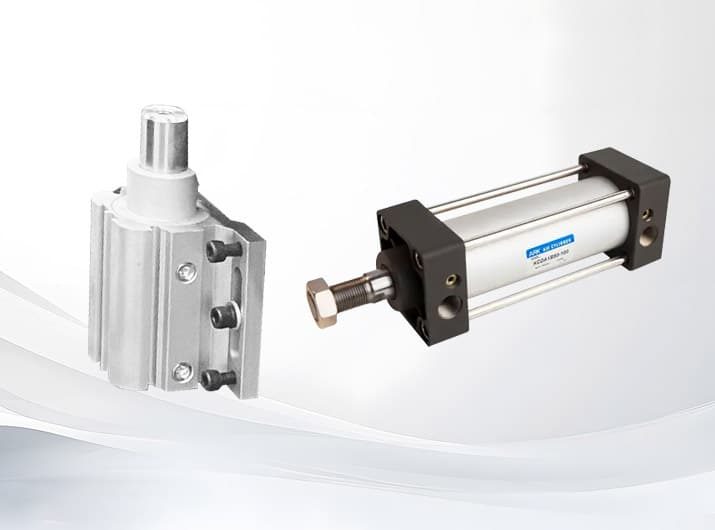

The cylinder positioning device is an optional configuration for the CNC router, designed to improve workpiece alignment and positioning accuracy. Using pneumatic cylinders, ensures consistent and precise material placement, reducing setup time and enhancing machining efficiency. Ideal for high-precision applications, it boosts productivity and ensures superior processing results.

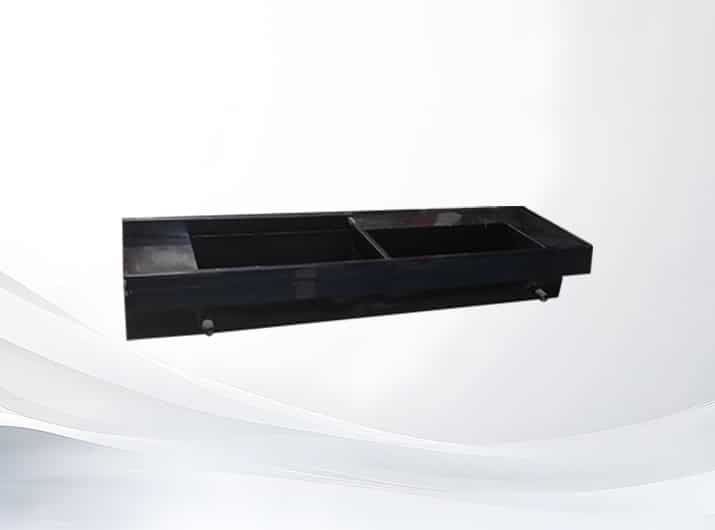

The water sink is an optional configuration for the CNC router, designed for efficient cooling and dust suppression during machining. It helps reduce heat buildup, prolongs tool life, and improves cutting quality, especially for materials like stone and metal. Ideal for wet processing, it enhances precision and ensures a cleaner workspace.
AccTek CNC routers deliver fast, accurate results with minimal errors, supporting intricate designs and mass production across the woodworking, plastic, and metal industries.
Our machines are built with high-quality frames and components, ensuring long service life, high load-bearing capacity, and stability during high-speed operations.
Equipped with user-friendly interfaces and smart controllers, our routers offer smooth motion control, automatic toolpath optimization, and easy integration with various CAD/CAM software.
From machine size to spindle power and motor type, we offer flexible configurations to suit different production needs, budgets, and material requirements.
The spindle power of the CNC router is 10kW, featuring a 5-axis ATC (Automatic Tool Changer) spindle, which provides high efficiency, precision, and versatility for complex machining tasks. The 5-axis capability allows for multi-directional cutting, enabling intricate designs and detailed surface machining without the need for repositioning the workpiece. The air-cooled system ensures effective heat dissipation, reducing maintenance and improving operational stability. The ATC functionality enables automatic tool changes, increasing productivity by seamlessly switching between different cutting tools without manual intervention. This powerful spindle is ideal for processing a variety of materials, including wood, plastics, composites, and soft metals, making it a reliable choice for advanced industrial applications requiring high-speed performance and precision.
The CNC router can process a wide range of materials, making it highly versatile for various applications. It is well-suited for cutting, engraving, and shaping different types of wood, including hardwood, softwood, MDF, plywood, and particleboard, making it ideal for furniture production, cabinetry, and decorative designs. It is also effective for processing plastics such as acrylic, PVC, ABS, and polycarbonate, commonly used in signage, prototyping, and industrial applications. The machine can handle composite materials like fiberglass, carbon fiber, and honeycomb panels, which are widely used in aerospace, automotive, and structural applications. Additionally, it is capable of machining soft metals such as aluminum, brass, and copper with proper cutting tools and speeds, ensuring precision and smooth finishes. Foam materials like EVA, polyurethane, and polystyrene can also be processed for packaging, modeling, and artistic applications. With its high-power spindle and automatic tool-changing capability, this CNC router ensures efficient, precise, and high-quality machining across various materials, making it ideal for industrial and commercial use.
This machine uses the Syntec 610MA-E5 control system with RTCP (Rotation Tool Center Point), a high-performance CNC controller designed for advanced 5-axis machining. The Syntec 610MA-E5 offers precise motion control, high-speed processing, and excellent stability, ensuring smooth and accurate machining operations. The RTCP functionality allows for real-time tool center point compensation, enabling precise multi-axis machining by automatically adjusting the tool’s movement relative to the workpiece. This improves accuracy and surface quality, especially for complex 3D contouring and intricate designs. The system features an intuitive user interface, advanced programming capabilities, and built-in diagnostic tools, enhancing efficiency and reducing setup time. With its industrial-grade reliability and high-level automation, the Syntec 610MA-E5 ensures optimal performance for demanding machining applications.
This machine is equipped with a disc automatic tool changer that can accommodate 8 tools as standard. The disc ATC system enables fast and efficient tool changes, reducing downtime and improving workflow efficiency. This feature is especially beneficial for machining processes that require multiple tools, allowing seamless transitions between different cutting operations without manual intervention. The reliable tool-changing mechanism enhances precision and consistency, making it ideal for complex machining tasks across various materials. With its smooth and automated operation, the disc tool changer optimizes productivity and ensures high-quality results in industrial and commercial applications.
The typical delivery time for the CNC router is 30 to 40 working days, depending on factors such as production schedules, order volume, and shipping arrangements. Once an order is placed, the manufacturing process begins, which includes assembling the machine, conducting quality inspections, and performing necessary tests to ensure proper functionality. After production is completed, the machine is carefully packaged and prepared for shipment. The actual shipping time may vary based on the destination, customs clearance, and transportation method.
The CNC router comes with comprehensive technical support to ensure smooth operation and efficient troubleshooting. Online technical support is available, allowing users to receive guidance on installation, software setup, machine calibration, and problem resolution. This support may include remote assistance, video tutorials, and step-by-step instructions to help users operate and maintain the machine effectively. Additionally, on-site training is offered as a paid option for those who prefer hands-on instruction. We provide in-depth training on machine operation, maintenance, and troubleshooting, helping users gain practical experience under the guidance of skilled technicians. These support options ensure that customers can maximize the machine’s performance and minimize downtime, whether through remote assistance or direct training.
The warranty period for the CNC router is three years for the entire machine, covering any manufacturing defects, material failures, or workmanship issues. This ensures long-term reliability and peace of mind for users. Additionally, the core components, including the spindle, drive system, and controller, are covered under a two-year warranty. These essential parts are critical for machine performance, and the warranty protects against premature failures or malfunctions. During the warranty period, customers can receive free repairs or replacements for defective parts, provided the issues are not caused by improper use, unauthorized modifications, or external damage.
The CNC router is certified with CE and FDA approvals, ensuring compliance with international safety and quality standards. The CE certification indicates that the machine meets the health, safety, and environmental protection requirements set by the European Union, making it suitable for use in European markets. It ensures that the machine is manufactured with high-quality components and follows strict safety regulations to protect users. The FDA certification confirms that the machine meets the standards set by the U.S. Food and Drug Administration, which is particularly important for applications involving materials used in medical, food-related, or regulated industries. These certifications demonstrate the machine’s reliability, safety, and adherence to global manufacturing standards, providing users with confidence in its performance and compliance.
