Product Introduction
The sheet laser cutting machine is a precision tool designed to cut metal sheets with high speed, accuracy, and clean edges. It uses a focused laser beam to melt, burn, or vaporize material, enabling complex shapes and fine details with minimal waste. Ideal for cutting stainless steel, carbon steel, aluminum, brass, and other metals, it delivers consistent results across varying thicknesses. The non-contact cutting process reduces tool wear and material deformation. AccTek Group’s sheet laser cutting machines feature advanced control systems, high-efficiency laser sources, and intelligent motion components for smooth, stable operation. They support automated loading, nesting, and real-time monitoring to improve productivity and reduce labor. Suitable for manufacturing, fabrication, automotive, aerospace, and signage industries, these machines are built for continuous use in demanding environments. With user-friendly interfaces and customizable configurations, AccTek Group provides reliable laser cutting solutions that help businesses streamline production, maintain quality, and stay competitive in today’s fast-paced market.
Types of Sheet Laser Cutting Machines
-
AKJ-F1 Laser Cutting Machine
$12,200.00 – $58,600.00 This product has multiple variants. The options may be chosen on the product page -
AKJ-F2 Laser Cutting Machine
$17,700.00 – $73,500.00 This product has multiple variants. The options may be chosen on the product page -
AKJ-F3 Laser Cutting Machine
$19,000.00 – $166,000.00 This product has multiple variants. The options may be chosen on the product page -
AKJ-FB Laser Cutting Machine
$15,200.00 – $175,500.00 This product has multiple variants. The options may be chosen on the product page -
AKJ-FC Laser Cutting Machine
$23,500.00 – $175,000.00 This product has multiple variants. The options may be chosen on the product page -
AKJ-FBC Laser Cutting Machine
$28,000.00 – $185,000.00 This product has multiple variants. The options may be chosen on the product page

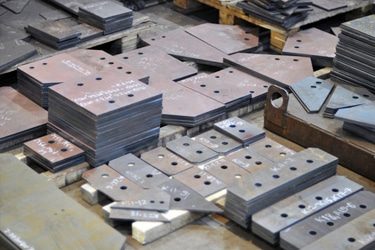

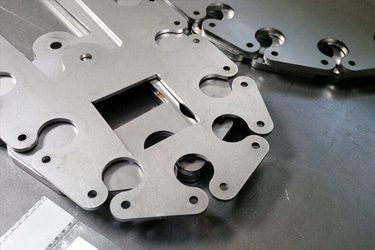

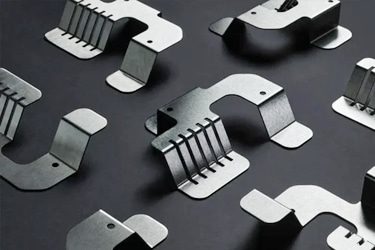

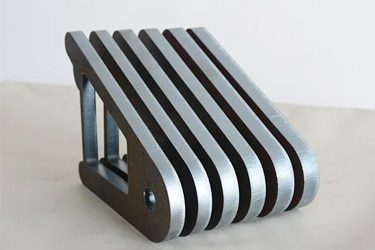

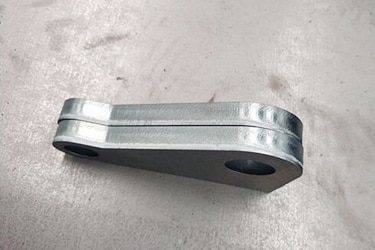

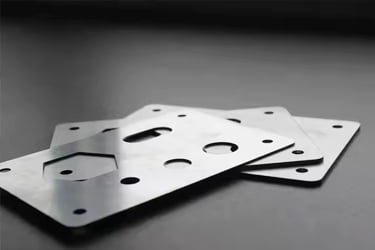

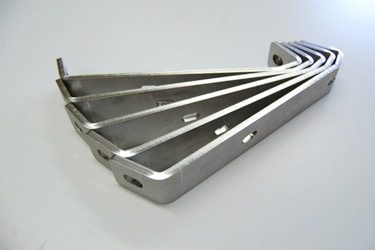

Application of Sheet Laser Cutting Machines
Sheet laser cutting machines are widely used in industries that require precise, efficient, and flexible metal processing. In manufacturing, they cut components for machinery, equipment frames, and enclosures. In the automotive industry, they are used to produce car body parts, brackets, and structural elements with high accuracy. Aerospace companies rely on them for cutting lightweight, high-strength metal sheets used in aircraft components. In construction, they are used for steel panels, support structures, and architectural elements. Sheet metal fabricators use them for custom parts, decorative panels, and ventilation systems. In the signage industry, they enable clean, detailed cuts for metal letters and logos. Home appliance manufacturers use them for stainless steel surfaces, housings, and internal parts. AccTek Group’s sheet laser cutting machines support a wide range of materials, including stainless steel, carbon steel, aluminum, and galvanized sheet. They help improve production efficiency, reduce waste, and deliver consistent results for high-demand, high-precision applications.
Customer Testimonials
Sheet Laser Cutting Machine VS Other Cutting Machines
| Comparison Item | Sheet Laser Cutting Machine | Plasma Cutting Machine | Waterjet Cutting Machine | Mechanical Cutting Machine |
| Cutting Method | Laser beam (thermal) | Plasma arc (thermal) | High-pressure water + abrasive | Blades, punches, or saws |
| Cutting Precision | Very high | Moderate | High | Low to moderate |
| Edge Quality | Clean, smooth edges | Rougher edges | Smooth edges | May require finishing |
| Cutting Speed | Fast | Very fast | Slow to moderate | Moderate |
| Material Thickness Range | Thin to medium sheets | Medium to thick sheets | Thin to thick | Limited by tool size |
| Material Compatibility | Metals (SS, CS, aluminum, etc.) | Conductive metals only | Almost all materials | Limited to softer or specific materials |
| Heat-Affected Zone | Minimal | Large | None | None |
| Cutting Accuracy | ±0.1 mm or better | ±1 mm | ±0.2 mm | ±0.5 mm or more |
| Setup Time | Short | Short | Long | Moderate |
| Waste and Kerf | Minimal | Medium | High | Medium |
| Operating Cost | Low to moderate | Low | High (abrasives, water, energy) | Low |
| Maintenance Requirements | Low | Medium | High | High |
| Automation Capability | High (CNC and smart systems) | Moderate | Moderate | Low to moderate |
| Environmental Impact | Clean, no consumables | Fumes and dross | Water and abrasive disposal | Noise, debris, and tool wear |
| Ideal Use Cases | Precision parts, complex designs | Heavy-duty metal cutting | Non-metal + metal cutting | Basic shapes, high-volume cuts |
Why Choose Us
AccTek Group is a leading laser cutting machine manufacturer, dedicated to delivering high-quality, precision-driven solutions for industries worldwide. With years of experience in laser technology, we design and produce laser cutting machines that enhance efficiency, reduce production costs, and improve overall productivity. Our machines are widely used in metal fabrication, automotive, aerospace, and other industries that require precise and efficient cutting. We prioritize technological innovation, strict quality control, and exceptional customer service to ensure that every machine meets international standards. Our goal is to provide durable, high-performance solutions that help businesses optimize their operations. Whether you need a standard machine or a customized cutting system, AccTek Group is your trusted partner for reliable laser cutting solutions.
Advanced Technology
Our laser cutting machines feature high-speed, precision cutting with the latest laser technology, ensuring smooth edges, minimal waste, and superior efficiency across various materials and thicknesses.
Reliable Quality
Each machine undergoes rigorous quality control and durability testing to ensure long-term stability, low maintenance, and consistent high performance, even under demanding industrial conditions.
Comprehensive Support
We provide full technical support, including installation guidance, operator training, and after-sales service, ensuring smooth machine operation and minimal downtime for your business.
Cost-Effective Solutions
Our machines offer high performance at competitive prices, with customizable options to fit different production needs, helping businesses maximize their investment without compromising on quality.
Related Resources
What Is Laser Cutting?
2025-03-06
Discover the fundamentals of laser cutting, its process, types, applications, and benefits. Learn how this advanced technology is transforming modern manufacturing.
Frequently Asked Questions
What Is Sheet Laser Cutting?
Sheet laser cutting is a manufacturing process that uses a high-powered laser beam to cut flat sheets of material, usually metal. The laser melts, burns, or vaporizes the material along a pre-programmed path, producing clean, precise cuts. Here’s a quick breakdown of how it works:
- Process: A focused laser beam is directed at the sheet, which heats and cuts through it. A computer numerical control (CNC) system guides the laser based on a digital design.
- Precision: Because the laser beam is extremely narrow, it allows for tight tolerances, intricate shapes, and minimal waste.
- Speed & Efficiency: Laser cutting is fast and repeatable, making it ideal for both prototypes and large-scale production.
What Is The Main Disadvantage of Sheet Laser Cutting?
The main disadvantage of sheet laser cutting is the high upfront cost, especially for industrial-grade machines. Here’s what that means:
- Equipment Cost: Laser cutting machines are expensive to buy and maintain. Fiber and CO2 lasers require a significant investment, making them less accessible for small shops or low-budget operations.
- Operating Cost: While efficient, they consume a lot of power and may require assist gases like nitrogen or oxygen, adding to the cost.
- Material Limitations: Very thick materials can be hard to cut cleanly. Reflective metals (like copper or brass) can also pose challenges without the right equipment.
- Safety Concerns: High-powered lasers can be dangerous if not handled properly, requiring strict safety protocols.
What Is The Cost of Sheet Laser Cutting Machines?
The cost of sheet laser cutting machines ranges from around $12,500 to over $190,000, depending on the machine’s type, power, and capabilities. Here’s a clearer breakdown:
- Entry-Level Machines ($12,500–$30,000)
- Lower wattage (around 1kW–3kW)
- Suitable for light-duty metal cutting, small workshops, or hobby use
- Limited cutting thickness and slower speeds
- Mid-Range Machines ($30,000–$70,000)
- Medium wattage (4kW–6kW)
- Better cutting quality, speed, and thickness range
- Good for small to mid-size manufacturers
- Industrial Machines ($80,000–$190,000+)
- High power (12kW and above)
- Built for 24/7 production and heavy-duty cutting
- Includes automation, cooling systems, and advanced software
What Thickness Ranges Can Sheet Laser Cutting Machines Effectively Handle?
Sheet metal laser cutting machines can process materials of various thicknesses depending on the laser power and material type. Here’s a clear overview:
- Carbon Steel
- 1KW-2KW: 6-10 mm
- 3KW–6KW: 12-20 mm
- 12KW+: up to 30 mm
- Stainless Steel
- 1KW–2KW: 4–6 mm
- 3KW–6KW: 10–20 mm
- 12KW+: up to 30 mm
- Aluminum
- 1KW–2KW: 3–6 mm
- 3KW–6KW: 10–16 mm
- 12KW+: up to 20 mm
- Copper & Brass
- 1KW–2KW: 2–4 mm
- 3KW–6KW: 6–10 mm
- 12KW+: up to 12 mm
How To Choose The Correct Sheet Laser Cutting Machine Bed Size?
Choosing the right laser cutting machine bed size isn’t just about dimensions—it’s about aligning with your workflow, materials, and business needs. Here’s what to look at:
- Material Size Compatibility: Pick a bed size that fits your most commonly used sheet sizes (e.g., 4′ x 8′ or 5′ x 10′). Avoid having to cut down materials before use—it wastes time and adds inconsistency.
- Part Size and Nesting: Smaller parts benefit from larger beds due to better nesting and material use. If cutting large parts, make sure the bed fits the biggest piece in one go to avoid misalignment.
- Production Volume: Low-volume jobs can work with smaller beds. High-volume or industrial production needs larger beds for better efficiency, fewer material changes, and support for automation.
- Workshop Space: Bigger machines need more floor space. Ensure your shop can accommodate the machine, plus room for loading, maintenance, and ventilation.
- Cost vs. Long-Term Value: Smaller machines cost less upfront, but larger beds may save more over time through higher output and reduced waste. If you’re planning to grow, consider sizing up now.
What Is The Service Life of Sheet Laser Cutting Machines?
The service life of sheet laser cutting machines depends on several factors, including build quality, usage intensity, maintenance, and the type of laser used. Here’s how to break it down:
- Typical Service Life: Most well-maintained fiber laser cutting machines last 8 to 10 years or more. If the machine is not properly maintained, its lifespan may be shortened.
- Usage Intensity: Machines running multiple shifts daily will wear faster than those used occasionally. High-volume industrial use might reduce effective service life to around 6–8 years without proper care.
- Maintenance Practices: Regular maintenance is critical. Replacing worn parts, keeping optics clean, and ensuring proper cooling and alignment can extend lifespan significantly.
- Laser Source Lifespan: Fiber lasers typically last 100,000+ hours of operation. However, parts like lenses, nozzles, and motion systems will need periodic replacement regardless of the laser source’s lifespan.
- Build Quality and Brand: Machines from reputable manufacturers with solid construction and components tend to last longer and hold up better under stress.
What Are The Main Dangers of Sheet Laser Cutting Machines?
While laser cutting machines are highly efficient, they carry several safety risks if not properly handled. Understanding these dangers helps prevent accidents and equipment damage.
- Laser Radiation: The laser beam can cause serious eye and skin injuries. Fiber lasers operate at high power, and direct or reflected exposure can be harmful. Always use proper safety enclosures and wear eye protection rated for the laser wavelength.
- Fire Hazard: Laser cutting generates intense heat, which can ignite flammable materials, dust, or nearby debris. Poor ventilation, improper materials, or leaving the machine unattended increases the risk of fire.
- Fumes and Gases: Cutting certain materials—especially plastics or coated metals—releases toxic fumes. Without proper fume extraction or filtration systems, these can pose respiratory hazards and contaminate the workspace.
- Mechanical Injuries: Moving parts like the gantry, cutting head, or sheet loader can crush or trap fingers and hands if safety protocols aren’t followed. Auto-loading systems require extra caution.
- Electrical Hazards: Laser cutting machines run on high-voltage systems. Faulty wiring, poor grounding, or unauthorized repairs can lead to electric shock or equipment failure.
- Noise Exposure: Some machines, especially high-power models or those used in industrial settings, can generate excessive noise, which may require hearing protection in continuous-use environments.
How To Maintain Sheet Laser Cutting Machines?
Proper maintenance keeps your laser cutting machine running smoothly, extends its service life, and helps prevent costly downtime. Here’s what to focus on:
- Daily Cleaning and Inspection: Clean the machine bed, lenses, and nozzles at the start or end of each shift. Remove metal dust, slag, and debris. Inspect the optical path (if applicable) and check for any loose bolts or abnormal noises.
- Lens and Nozzle Maintenance: Dirty or damaged lenses and nozzles reduce cutting quality. Clean them regularly with appropriate solvents and replace them when worn. A clogged nozzle can cause inconsistent cuts or material damage.
- Lubrication and Moving Parts: Lubricate guide rails, gears, and bearings according to the manufacturer’s schedule. Keeping the motion system smooth reduces wear and keeps precision high.
- Cooling System Care: For machines with water-cooled lasers, monitor coolant levels and clean filters. Replace water or coolant periodically to avoid overheating or scale buildup in the laser source.
- Check Alignment and Focus: Verify beam alignment and focus regularly. Misalignment can cause poor cutting results and unnecessary wear on components.
- Software and Firmware Updates: Keep the machine’s software and firmware up to date. Manufacturers often release updates that improve performance, fix bugs, or enhance safety features.
- Scheduled Maintenance: Follow the manufacturer’s recommended service intervals. This includes checking belts, air filters, vacuum systems, and electrical connections. Keeping a maintenance log helps track issues and stay on schedule.
Get Laser Cutting Solutions
At AccTek Group, we provide advanced laser-cutting solutions tailored to meet the diverse needs of modern industries. Whether you require high-speed precision cutting, customized automation, or cost-effective production, our machines are designed to enhance efficiency and performance. Our team of experts is committed to helping businesses find the right laser-cutting solution based on material type, thickness, and production scale. From small workshops to large-scale manufacturing, we offer various models with customizable options to optimize your workflow.
With cutting-edge technology, durable construction, and comprehensive support, AccTek Group ensures you get a reliable and efficient laser-cutting solution that meets your requirements. Contact us today to explore how our fiber laser-cutting machines can drive your business forward.
